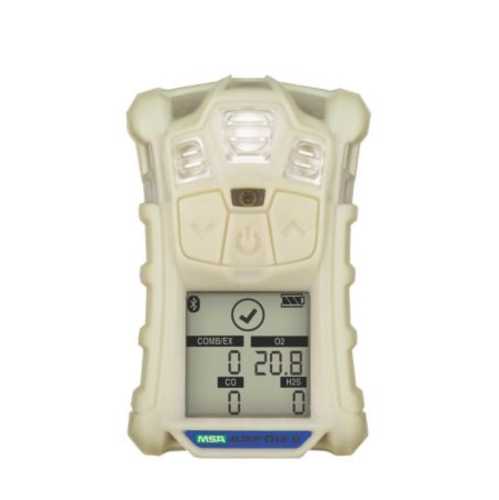

MSA ALTAIR 4XR Multigas Detector: LEL, O2, H2S & CO. Glow-In-The-Dark Case. European Charger.
Part Number 10178569
Outfitted with rapid-response MSA XCell® sensors, the ALTAIR 4XR Gas Detector is the toughest 4-gas monitor on the market and is backed by a 4-year warranty. The ALTAIR 4XR can also provide real-time incident awareness to team members, supervisors, safety managers and others when paired with the MSA ALTAIR Connect app via a Bluetooth® wireless connection.
Real-time
- Sense gas 2 times faster than the industry average with our XCell sensors
- Quickly update MSA ALTAIR 4XR settings via the ALTAIR Connect app (available on the Google Play Store)
- Send event notifications via text message with the ALTAIR Connect app
Rugged
- Survives 25 drops from 4 feet (1.2 meters) (MIL-STD-810G 516.6 Transit Drop 3rd Party Certified)
- Can survive an incidental 25-foot (7.5-m) drop onto concrete
- Dust- and waterproof IP68 rating (2 meters for at least 1 hour)
- Operating temperature range: -40°F to +140°F (-40°C to +60°C)
Reliable
- 4-year instrument & sensor warranty
- Confirm compliance quickly with the Bump LED & on-screen checkmark
- Bump and calibrate with 1/2 the test gas and in 1/2 the time vs. industry average
- Bump and calibrate at a specified “Time of Day” with your MSA GALAXY® GX2 Automated Test System
- MotionAlert option tells others that user has become immobile
- User-activated InstantAlert notifies others of a potentially dangerous situation
Sensor Options
1. Combustible (LEL)
2. Oxygen
3. Toxic
a. CO / H2S
b. CO (H2-Resistant) / H2S
c. CO / H2S-LC
d. CO / NO2
e. SO2 / H2S-LC
Case Color
1. Charcoal gray
2. Glow-in-the-dark
The ALTAIR 4XR Multigas Detector is for use by trained and qualified personnel.
It is designed to be used when performing a hazard assessment to:
• Assess potential worker exposure to combustible and toxic gases and vapors as well as low level
of oxygen.
• Determine the appropriate gas and vapor monitoring needed for a workplace.
Europe
Directive 2014/34/EU (ATEX): II 1G Ex ia da IIC T4 Ga, -40°C to +60°C, IP68
The ALTAIR 4XR Multigas Detector can be equipped to detect:
• Combustible gases and certain combustible vapors
• Oxygen-deficient or oxygen-rich atmospheres
• Oxygen for monitoring inertization applications. The device is suitable and certified for the
measurement of the oxygen concentration in gas mixtures for inertization according to EN 50104
but without alarm function.
• Specific toxic gases for which a sensor is installed.
NOTE: While the device can detect up to 30% oxygen in ambient air, it is approved for use only up to
21% oxygen.
The ATEX directive is only valid until 25% Vol O2.
