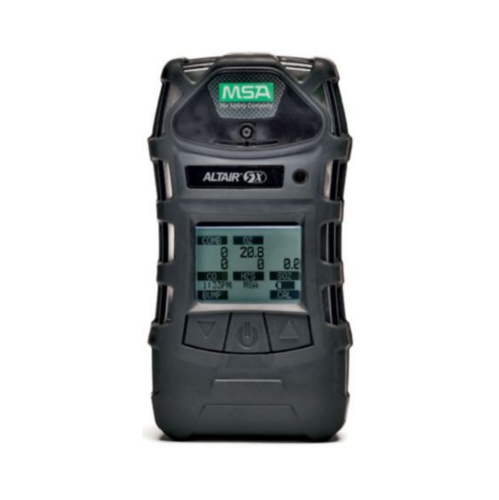

MSA ALTAIR 5X 10119600 Multigas Detector LEL (Pen), O2, CO, H2S Monochrome
Part Number 10119600
The ALTAIR 5X Gas Detector is capable of measuring up to 6 gases simultaneously and is now available with integrated PID sensor for VOC detection. Driven by advanced MSA XCell® Sensor Technology, the ALTAIR 5X Gas Detector delivers faster response time, better stability, accuracy, longer service life, and cost savings over the life of the instrument.
- Detects combustible gases in LEL and/or volume percentage range, oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, ammonia, chlorine, VOCs, and many others depending upon sensor configuration.
- Rugged overmolded polycarbonate housing provides unsurpassed durability, including ability to survive 10-ft. (3m) drop; IP65-certified.
- Field-proven integral pump provides consistent gas flow, eliminating concerns of externally-attached components.
- High performance XCell Sensors last longer:
- Typical life greater than 4 years for combustible, O2, CO/H2S, SO2, CO/NO2 and CO (high concentration) sensors.
- Typical life greater than 3 years for NH3 and Cl2 sensors.
- Most sensor response and clear times <15 seconds.
- Less calibration gas used:
- Requires about half of test gas typically used for calibration and bump tests.
- Rapid bump test gives results in less than 10 seconds for most common sensor configurations.
- Span calibration time of 60 seconds for most common sensor configurations.
- MotionAlert feature option tells others that user has become immobile.
- InstantAlert feature provides manual alarm to alert others as to a potentially hazardous situation.
- PID option allows for accurate, reliable VOC response with programmable reference factors.
- Large buttons and bright display provide easy operation, even when users wear gloves.
- Exclusive end-of-sensor warning cautions users when unit’s sensor nears end-of-life.
- Versatile MSA Link™ Software allows users to transmit data to a computer.
- Compatible with GALAXY® GX2 Test System and MSA Link Pro Software for fleet management.
- Wireless bluetooth included standard.
European Union
- 5X: 190529_FTZU_09E0026_10
- 5X: 191128_FTZU_08_ATEX_0340X
- 5X IR: 190529_FTZU_09E0027_10
- 5X IR: 191128_FTZU_09_ATEX_0006X
- 08_ALTAIR5XPID_CERT_ATEX_REV02_EN
- 5X/5X IR: Marine (DGUV)
- CE Declaration of Conformity – Altair 5X
- CE Declaration of Conformity – Altair 5X IR
- CE Declaration of Conformity – Altair 5X PID
MSA ALTAIR 5X Application Guide
MSA ALTAIR 5X At a Glance
MSA ALTAIR 5X Bulletin
MSA ALTAIR 5X Even Better
MSA ALTAIR 5X Features
MSA ALTAIR 5X Sensor Guide
MSA ALTAIR 5X Wireless Gas Detection
